规格型号

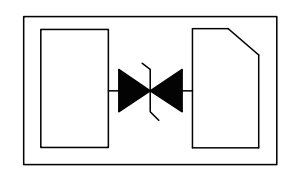

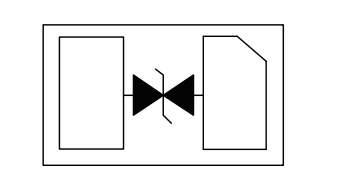

| Product Image |
封装类型
|
VRWM
Max. (V) |
Rated
Voltage Vdc(Max) (V) |
VBR
Min. (V) |
Vc
@1A （V） |
IPP
Max. (A) |
Clamping
Voltage Vc(V) Typical |
Trigger
Voltage Vt(V) Typical |
IR@VRWM
Max. (uA) |
Leakage
Current IL@Vdc (µA) |
CJ@
1MHZ (PF) |
Cj
@1MHz (pF) |
Protectable
Lines |
AEC-Q101
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | SOD-323 | 15/24 | - | 16.7/26.7 | 25/43 | 5.0/3.0 | - | - | 1.0 | - | 1.0 | - | 1 | NO | |
 | DFN1610 | 2.5 | - | 3.0 | 4.5 | 18.0 | - | - | 0.1 | - | 2.5 | - | 1 | NO | |
 | DFN1006 | 24.0 | - | 26.4 | 45.0 | 1.0 | - | - | 1.0 | - | 0.25 | - | 1 | NO | |
 | DFN1006 | 5.0 | - | 6.0 | 8.0 | 8.0 | - | - | 0.1 | - | 20.0 | - | 1 | NO | |
 | DFN1006 | 1.5 | - | 4.5 | 1.75 | 4.0 | - | - | 0.1 | - | 0.2 | - | 1 | NO | |
 | DFN1006 | 3.3 | - | 4.0 | 8.5 | 13.0 | - | - | 1.0 | - | 1.2 | - | 1 | NO | |
 | DFN1006 | 5.0 | - | 6.0 | 14 | 2.0 | - | - | 0.1 | - | 0.08 | - | 1 | NO | |
 | DFN1006 | 3.3 | - | 5.0 | 1.75 | 4.0 | - | - | 0.1 | - | 0.2 | - | 1 | NO | |
 | DFN1006 | 5.0 | - | 6.0 | 1.75 | 4.0 | - | - | 0.1 | - | 0.2 | - | 1 | NO | |
 | DFN1006 | 2.5 | - | 3.2 | 4.2 | 17.0 | - | - | 0.5 | - | 23.0 | - | 1 | NO | |
 | DFN1006 | 2.5 | - | 2.85 | 4.8 | 8.0 | - | - | 0.1 | - | 15.0 | - | 1 | NO | |
 | DFN1006 | 1.8 | - | 2.3 | 3.6 | 18.0 | - | - | 0.5 | - | 25.0 | - | 1 | NO | |
 | DFN0603 | 1.5 | - | 4.5 | 1.75 | 4.0 | - | - | 0.1 | - | 0.25 | - | 1 | NO | |
 | DFN0603 | 5.0 | - | 6.0 | 2.0 | 4.0 | - | - | 0.1 | - | 0.25 | - | 1 | NO | |
 | DFN0603 | 3.3 | - | 5.0 | 1.75 | 4.0 | - | - | 0.1 | - | 0.2 | - | 1 | NO |
